WWA-1 with dosing program

WWA-1 Evaluation Device with Dosing Program – Precise, Flexible, and User-Friendly

The WWA-1 evaluation device with dosing program is the ideal solution for demanding applications in dosing technology. Thanks to its flexible configuration options and easy operation, the system is suitable for both in-dosing and out-dosing processes. In combination with the WWC-4N relay box, the device provides a reliable basis for simple to complex dosing tasks.

Maximum Flexibility in Dosing

With the WWA-1 dosing system, you can individually decide whether one, two, three, or four components should be controlled. Dosing can be performed:

• automatically in sequence or
• manually individually started

This versatility makes the device an optimal choice for various production processes, mixing applications, and filling systems.

Intelligent Trailing Correction for Highest Accuracy

A special highlight is the automatic trailing correction per component. The system precisely analyzes how much material trails after a valve or screw is switched off. In future doses, the shut-off time is adjusted accordingly, so that the target weight is precisely achieved. This ensures maximum dosing accuracy and reduces material losses.

Safety and Process Control

For safe operation, the WWA-1 evaluation device offers several integrated protection functions:

• Adjustable maximum weight to prevent overfilling
• Flow monitoring: Automatically stops the process if no weight change is detected during dosing
• Start, stop, and pause function at the touch of a button for full control

These functions ensure reliable and error-free dosing in daily use.

Easy Operation and Intuitive Control

The user-friendly interface allows for quick setup and easy handling. All target values can be adjusted directly in the system. When out-dosing, the system automatically checks if there is sufficient material in the container – otherwise, the process is prevented and visually signaled.

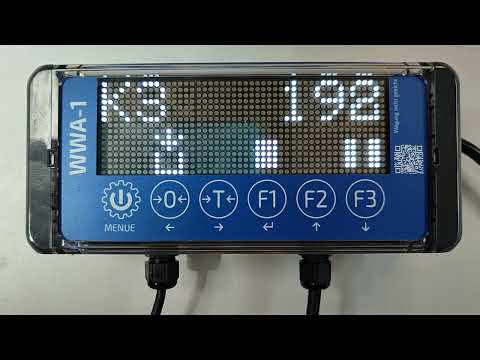

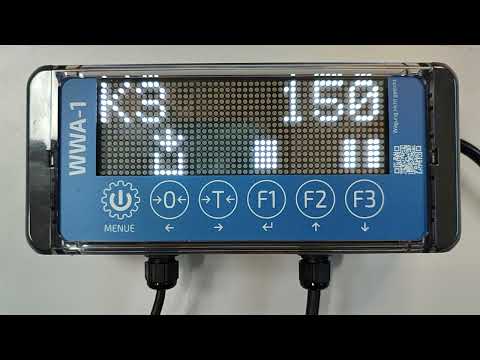

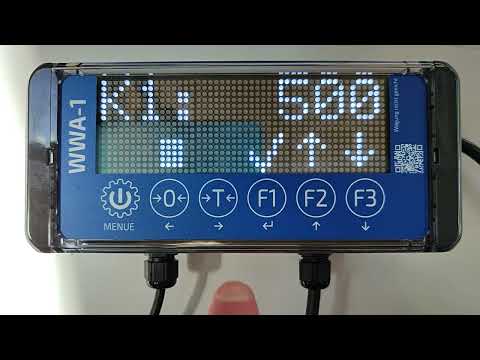

Watch our videos to experience how easy and intuitive the operation of the WWA-1 is and how effortlessly dosing processes can be implemented.

In-Dosing and Out-Dosing – One System for Everything

Whether in-dosing or out-dosing – the WWA-1 system works on the same reliable principle in both cases. This saves setup time and increases efficiency in the production process.

Individual Customization Possible

Our dosing programs can be individually tailored to your requirements. This way, you receive a customized solution for your specific process requirements. Ask us!

Your advantages at a glance:

• Flexible component control (1–4 components)
• Automatic trailing correction for precise results
• Intuitive operation and simple configuration
• Integrated safety and control functions
• Suitable for in-dosing and out-dosing processes
• Expandable with WWC-4N relay box

Rely on the WWA-1 evaluation device with dosing program and optimize your dosing processes sustainably – efficiently, precisely, and reliably. Contact us for individual consultation and adaptation to your requirements.
