inno!weight® wheel load scale

inno!weight® – Mobile wheel load weighing system for vehicles up to 3,200 kg

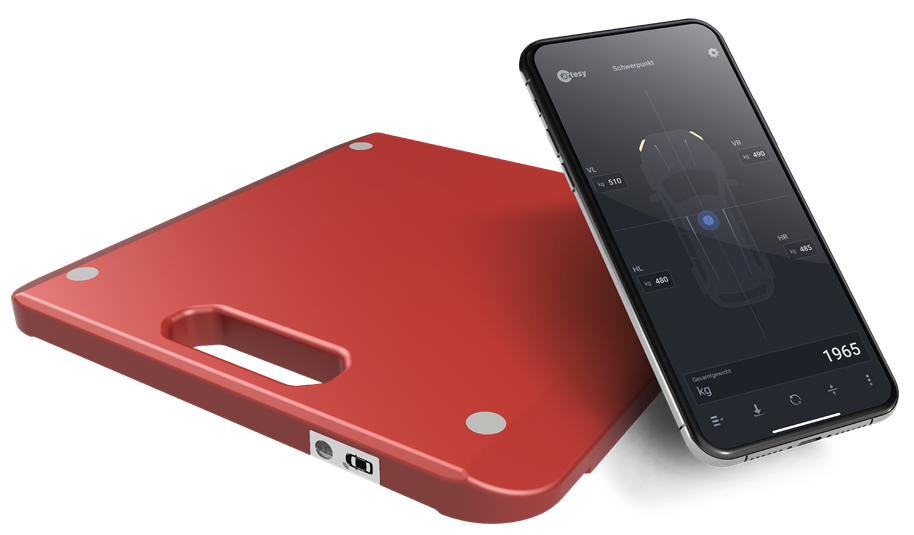

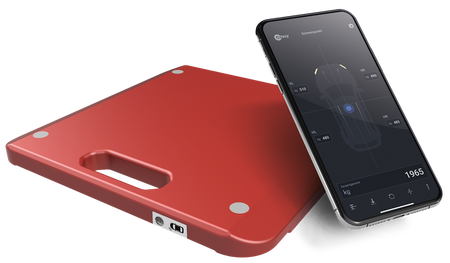

The inno!weight® weighing system is the mobile and versatile complete solution for fast and precise vehicle weighing up to a total weight of 3,200 kg. Developed for flexible use, it combines high-quality wheel load scales, an intuitive app, and a practical trolley case, which guarantees easy transport.

Mobile vehicle scale – lightweight and flexible

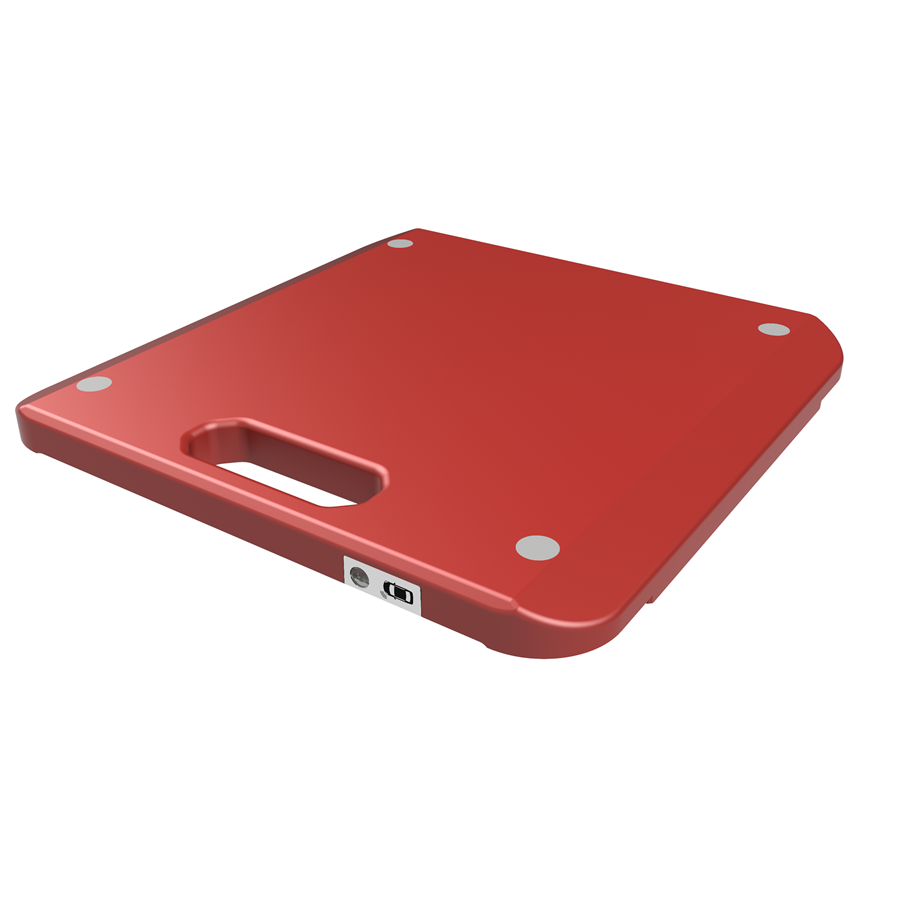

Thanks to the lightweight die-cast aluminum construction of the wheel load scales, you do not need drive-on ramps. The platforms can be easily moved, repositioned, and used directly on site.

Reliable power supply and long battery life

Standard batteries ensure flexible use without a power connection, with a battery life of over 200 hours. This makes the system ideal for mobile use on construction sites, in workshops, or for vehicle inspections.

Intelligent app control and digital documentation

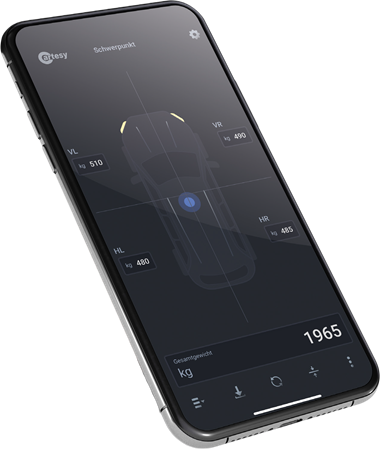

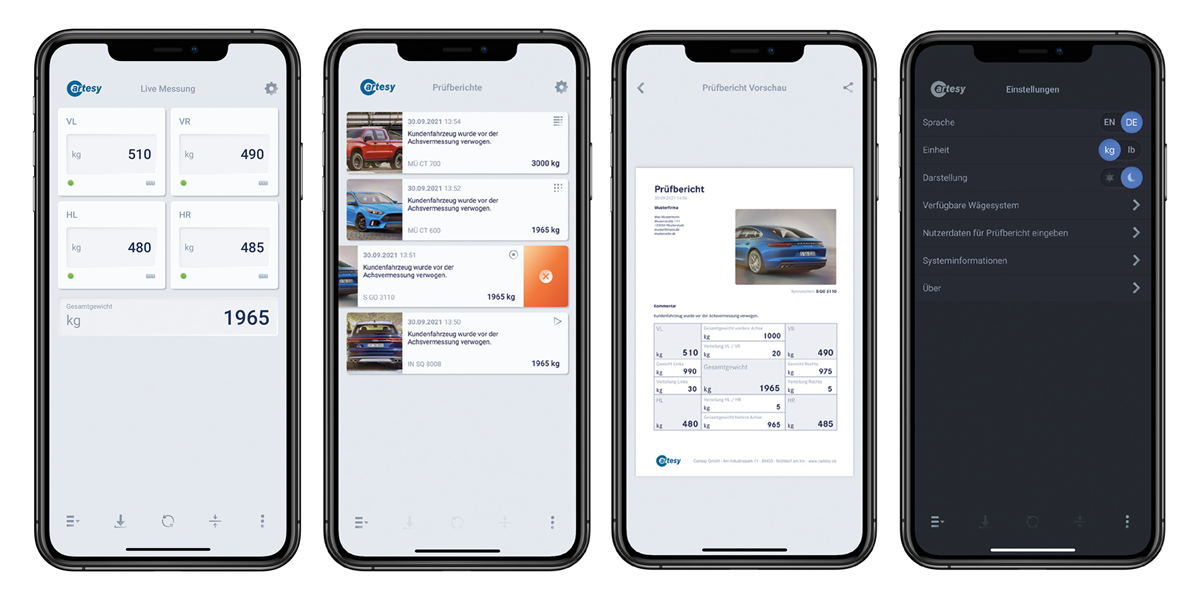

Via the app for iOS, Android, and Windows, weighing results can be retrieved in real time, detailed reports can be created and viewed later, printed, or sent. Thanks to the Floating-Master BT-BLE technology, a stable wireless connection with a greater range to your device is guaranteed.

Features at a glance:

• Compatible with smartphone, tablet, or PC

• Weighing modes: Live, Center of Gravity, Detail view, Axle measurement, Cross weight

• Light mode and Dark mode display

• Tare function for exact measurements

• Display of battery status, kg/lb/% output

• Language selection: German / English

Technical data:

• Measuring range per platform: 0 – 800 kg

• Overload capacity: 150% of nominal load

• Operating temperature: -10 to +60 °C

• Protection class: IP42

• Power supply: 2x AA batteries (1.5 V)

• Battery life: 200 hours

• Wireless: 2.4 GHz BLE

• Scale dimensions (L x W x H): 380 x 380 x 33 mm

• Case dimensions (L x W x H): 425 x 275 x 575 mm

• Area of use: level, solid ground

Scope of delivery:

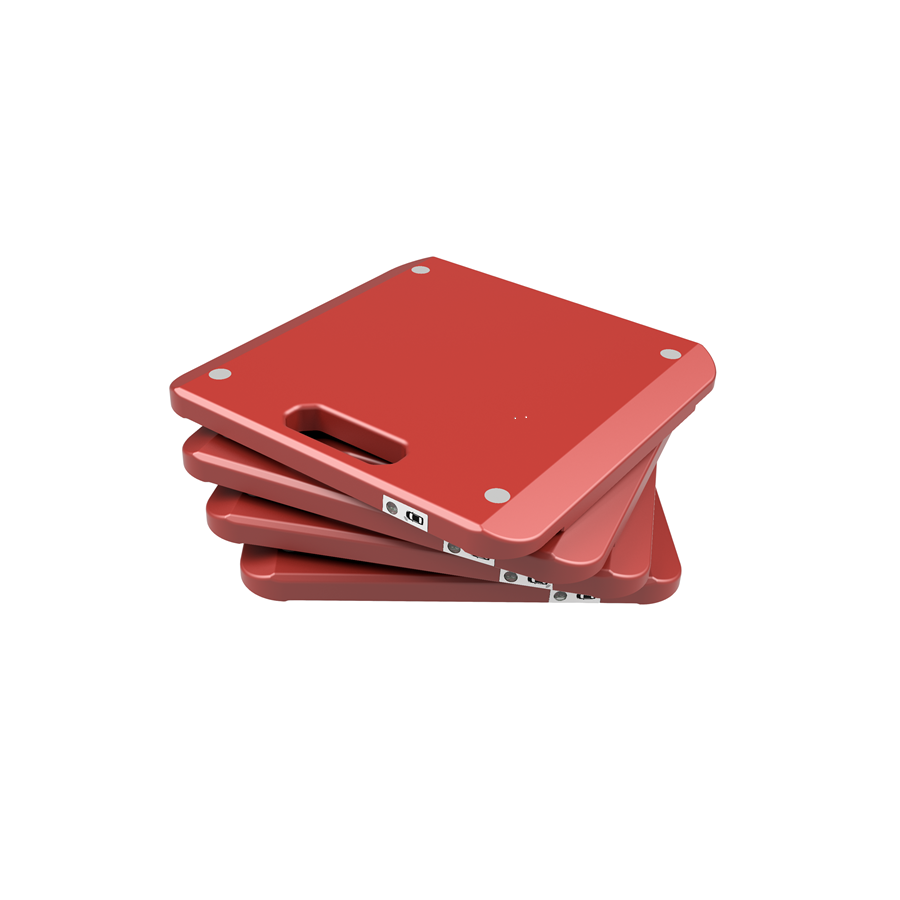

• 4 wheel load scales

• Intuitive app

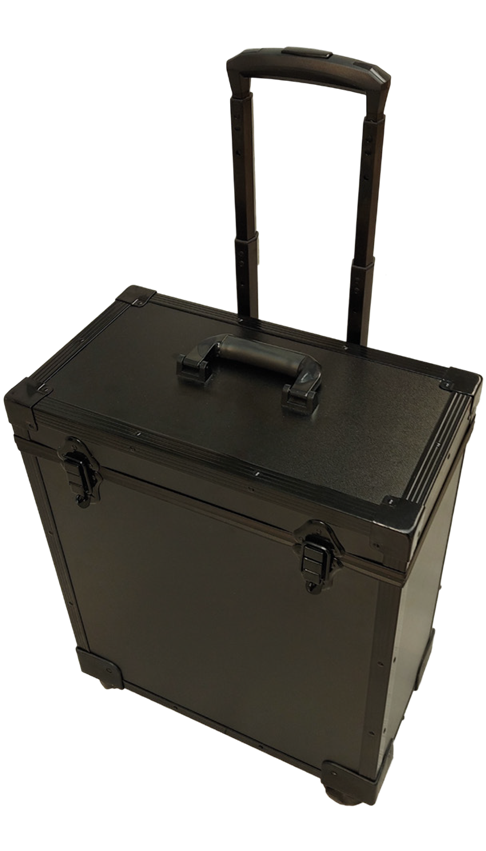

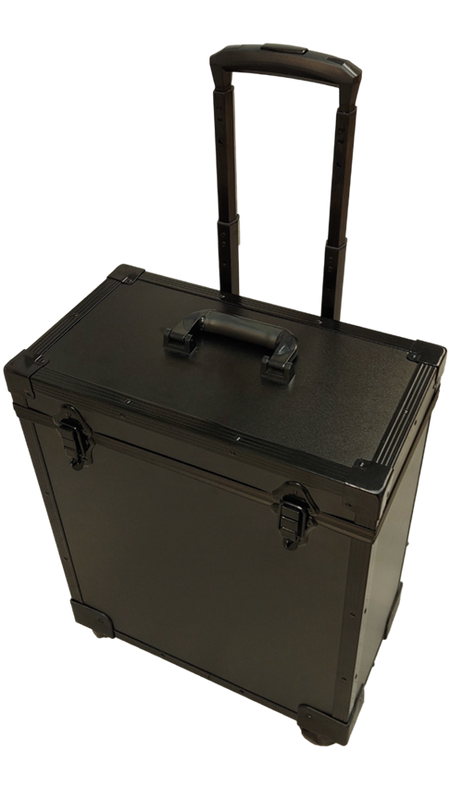

• Transportable trolley case

The inno!weight® system is the ideal choice for workshops, vehicle inspections, motorsport teams, and anyone who wants to record vehicle weights precisely on the go. With simple handling, digital data collection, and a robust design, it offers maximum flexibility and reliability.
