Wheel load scale inno!weight®

inno!weight® – Mobile wheel load weighing system for vehicles up to 3,200 kg

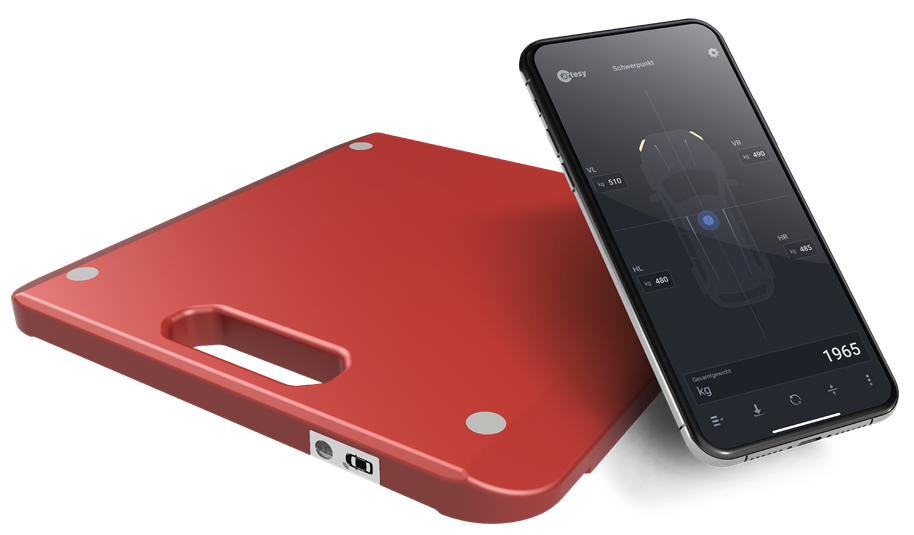

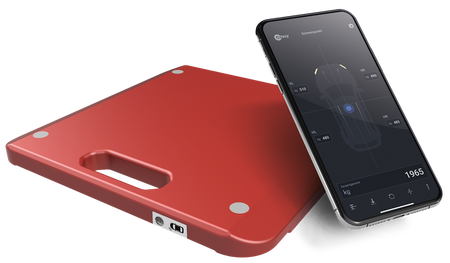

The inno!weight® weighing system is a mobile and versatile all-in-one solution for fast and precise weighing of vehicles up to a total weight of 3,200 kg . Designed for flexible use, it combines high-quality wheel load scales , an intuitive app , and a practical trolley case for easy transport.

Mobile vehicle scale – light and flexible

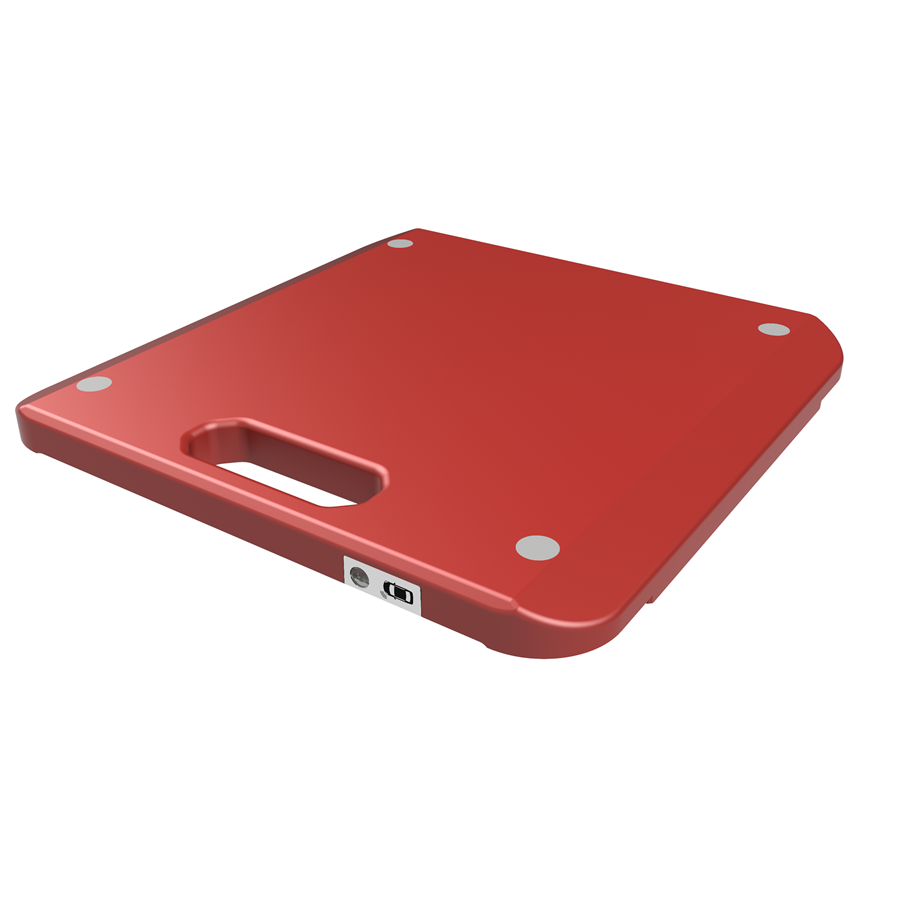

Thanks to the lightweight die-cast aluminum construction of the wheel load scales, you don't need any access ramps. The platforms can be easily moved, repositioned, and deployed directly on-site.

Reliable power supply and long runtime

Standard batteries allow for flexible use without a power connection , with a battery life of over 200 hours . This makes the system ideal for mobile use on construction sites, in workshops, or during vehicle inspections.

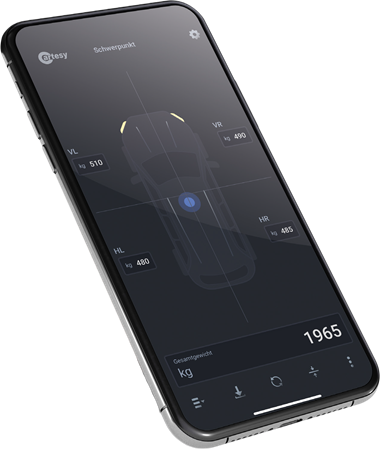

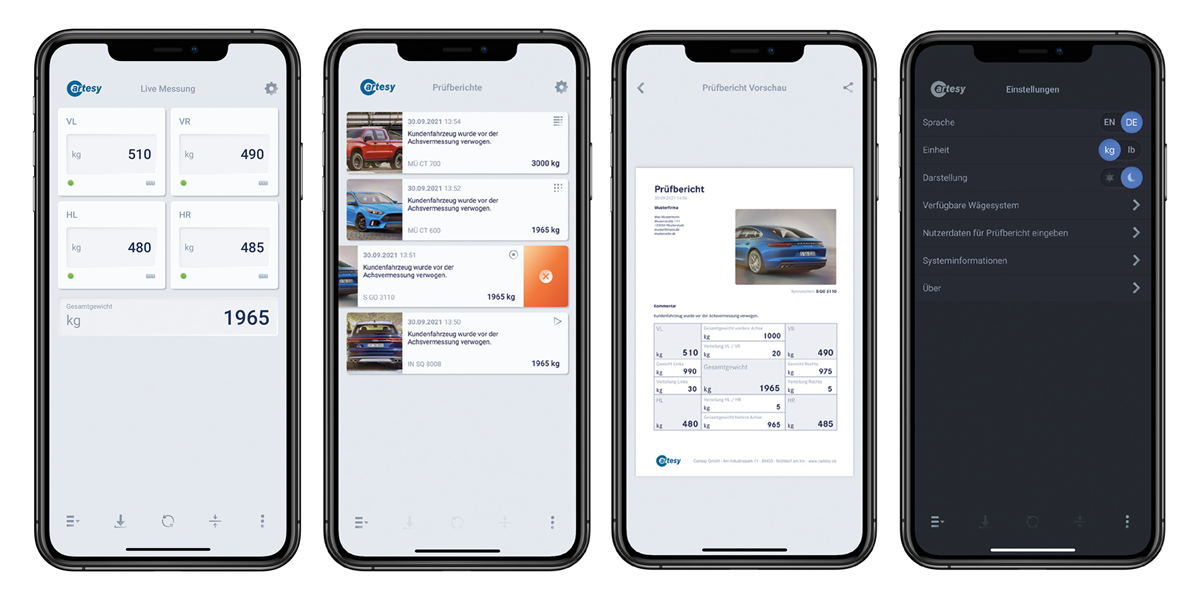

Intelligent app control and digital documentation

The app for iOS, Android, and Windows allows you to access weighing results in real time , create detailed reports, and later view, print, or send them. Thanks to Floating Master BT-BLE technology, a stable wireless connection with a longer range to your device is guaranteed.

Features at a glance:

• Compatible with smartphone, tablet or PC

• Weighing modes: Live , Center of gravity distribution , Detailed view , Axle measurement , Cross weight

• Light Mode and Dark Mode display

• Tare function for precise measurements

• Display of battery level , kg/lb/% output

• Language selection: German / English

Technical data:

• Measuring range per platform: 0 – 800 kg

• Overload resistance: 150% of the rated load

• Operating temperature: -10 to +60 °C

• Protection class: IP42

• Power supply: 2x AA batteries (1.5 V)

• Battery life: 200 hours

• Radio: 2.4 GHz BLE

• Scale dimensions (L x W x H): 380 x 380 x 33 mm

• Case dimensions (L x W x H): 425 x 275 x 575 mm

• Area of ​​application: flat, solid ground

Scope of delivery:

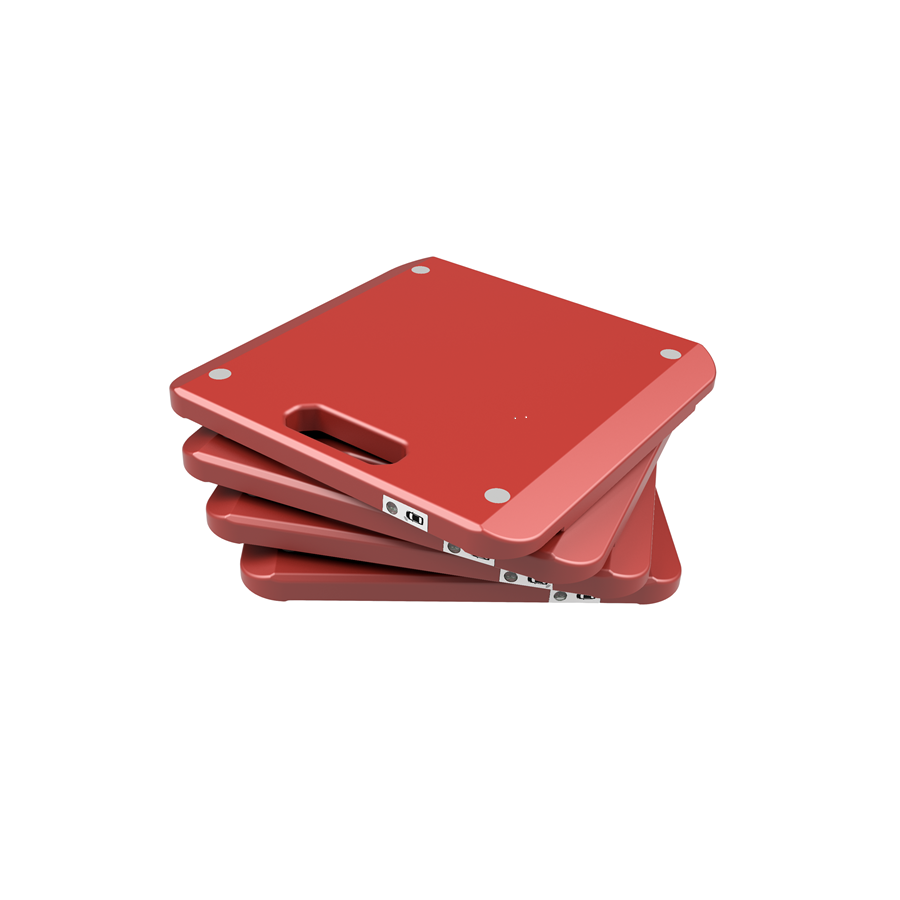

• 4 wheel load scales

• Intuitive app

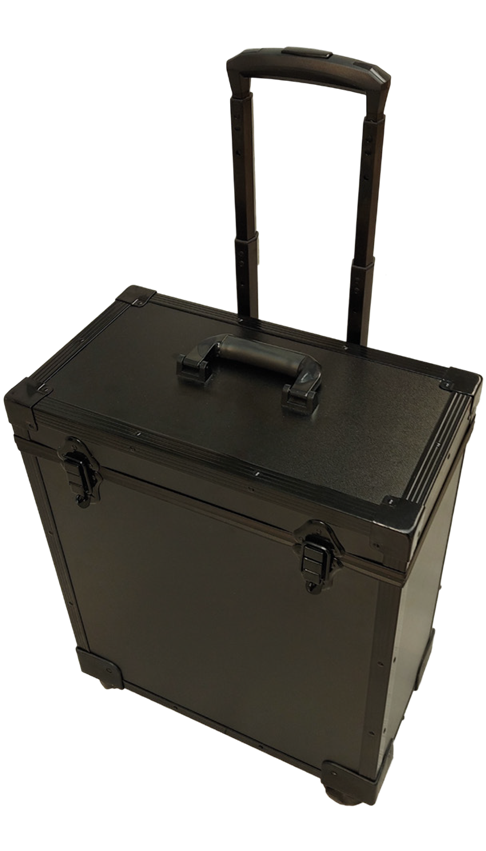

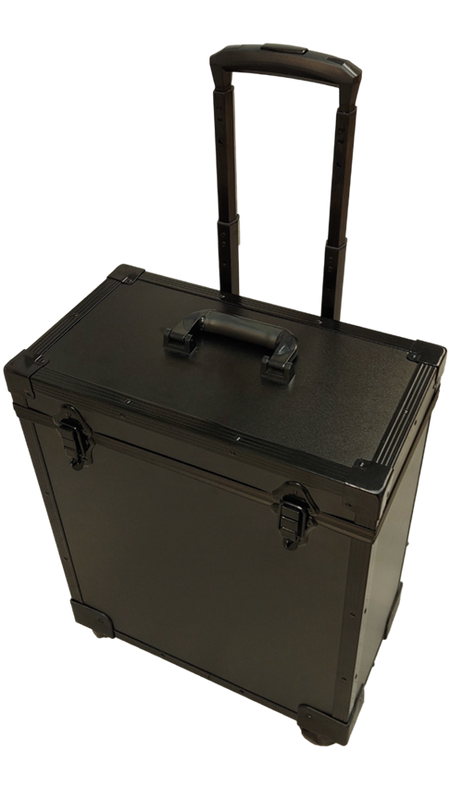

• Portable trolley case

The inno!weight® system is the ideal choice for workshops, vehicle inspections, motorsport teams , and anyone who wants to record precise vehicle weights on the move . With its easy handling, digital data acquisition, and robust design, it offers maximum flexibility and reliability.
